Flexible LED display

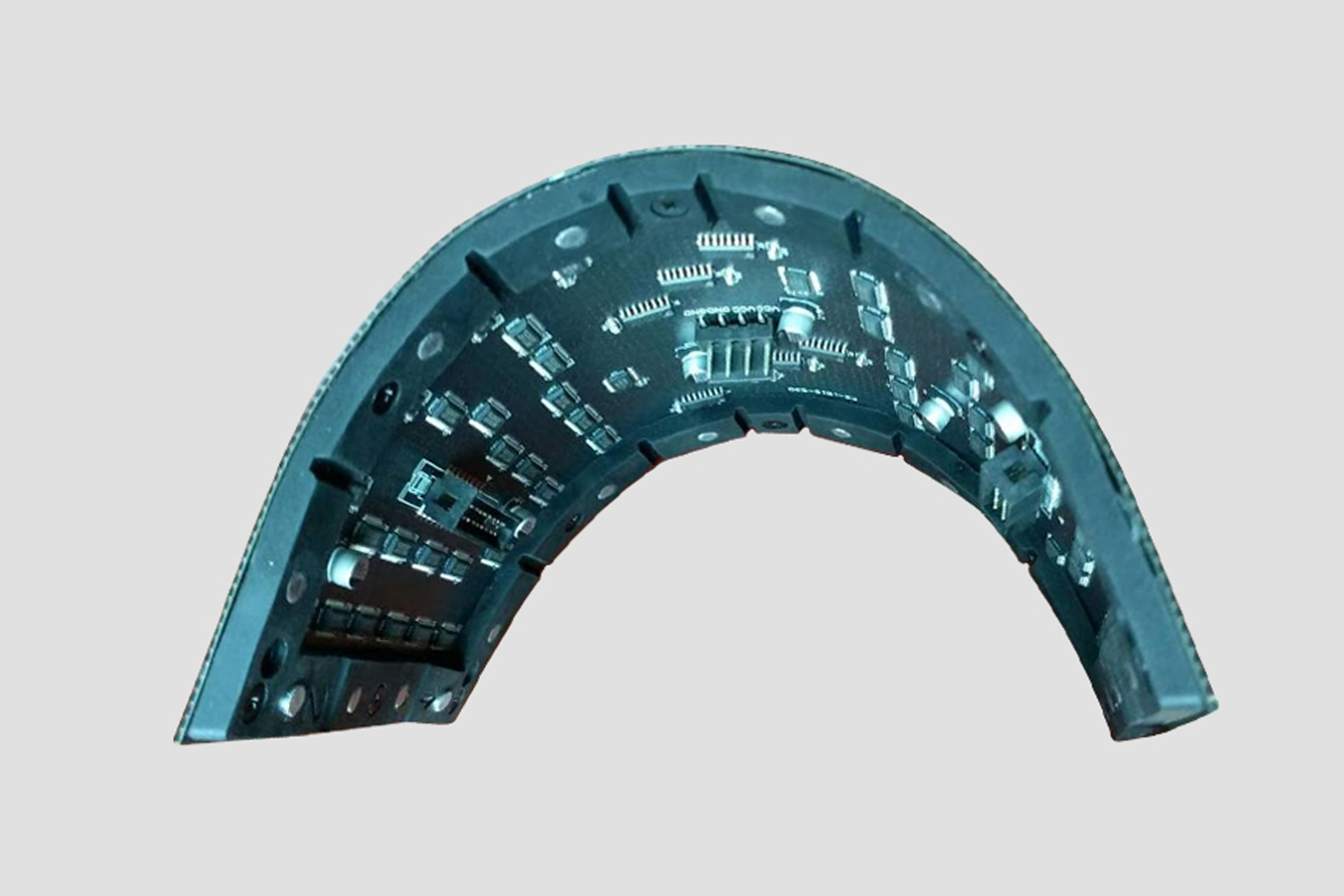

(1)Flexible module is compatible for concave ,convex ,round ,S shape LED screen .Free limits to your design .

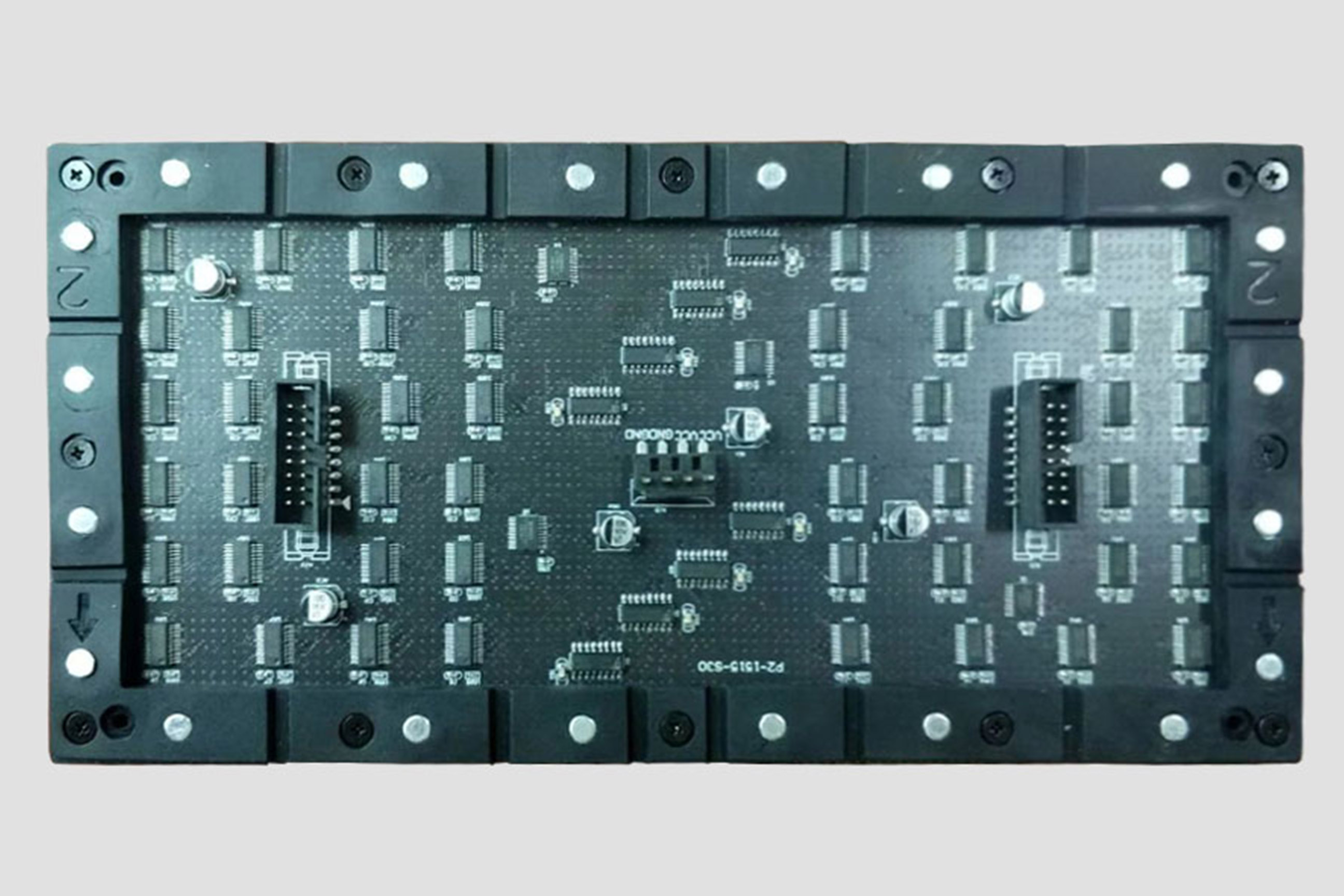

(2)Front and rear service magnetic modules.

(3Intelligent design to protect PCB and LED from too much bend pressure .The PCB and LED will not be damaged

until housing was been broken apart .

(4)Module thickness is 7mm including magnet

(5)Less possibility to be damaged during installation and maintenance .

FL Series
Model	FL1.667	FL1.875	FL2.0	FL2.5	FL3.0	FL4.0
LED Type	SMD1010	SMD1010	SMD1515	SMD2121	SMD2121	SMD2121
Pixel Pitch（mm）	1.667	1.875	2.0	2.5	3.0	4.0
Module Size(mm)	240*120	240*120	240*120	240*120	240*120	240*120
Module Resolution(pixels)	144*72	128*64	120*60	96*48	80*40	60*30
Service Access	Front&Rear	Front&Rear	Front&Rear	Front&Rear	Front&Rear	Front&Rear
Color Depth(bits )	16	16	16	16	16	16
Grey Level	16384	16384	16384	16384	16384	16384
Refresh Rate（Hz）	3840hz	3840hz	3840hz	3840hz	3840hz	3840hz
Drive Mode	1/24	1/32	1/30	1/24	1/20	1/15
Frame Rate（Hz）	50/60hz	50/60hz	50/60hz	50/60hz	50/60hz	50/60hz
Brightness（cd/m2 ）	800/1000	800/1000	800/1000	1200/1500	800/1000	800/1000
Viewing Angle (°)	H140°/V140°	H140°/V140°	H140°/V140°	H140°/V140°	H140°/V140°	H140°/V140°
Contrast Ratio	6000：1	8000：1	8000：1	8000：1	8000：1	8000：1
Working Voltage（V）	100-240	100-240	100-240	100-240	100-240	100-240
Max. Power Consumption (W/㎡)	880	880	880	880	880	880
Avg. Power Consumption (W/㎡)	290	290	290	290	290	290
Storage Temp（℃）	﹣40~﹢60	﹣40~﹢60	﹣40~﹢60	﹣40~﹢60	﹣40~﹢60	﹣40~﹢60
Working Temp（℃）	﹣10~﹢40	﹣10~﹢40	﹣10~﹢40	﹣10~﹢40	﹣10~﹢40	﹣10~﹢40
Storage Humidity    （RH）	10﹪~90﹪	10﹪~90﹪	10﹪~90﹪	10﹪~90﹪	10﹪~90﹪	10﹪~90﹪
Working Humidity（RH）	10﹪~90﹪	10﹪~90﹪	10﹪~90﹪	10﹪~90﹪	10﹪~90﹪	10﹪~90﹪
IP Grade(Front/Rear)	IP40/IP21	IP40/IP21	IP40/IP21	IP40/IP21	IP40/IP21	IP40/IP21
Lifetime（hrs）	100000	100000	100000	100000	100000	100000
