HD Small Pixel

T0.9375 / T1.25 / T1.56 / T1.875 (600X337.5)

Ultra thin, ultra light, the overall thickness is only 48mm.

No seam, ultra high definition, more natural color.

3840hz ultra high refresh rate, no drag shadow, enjoy HD.

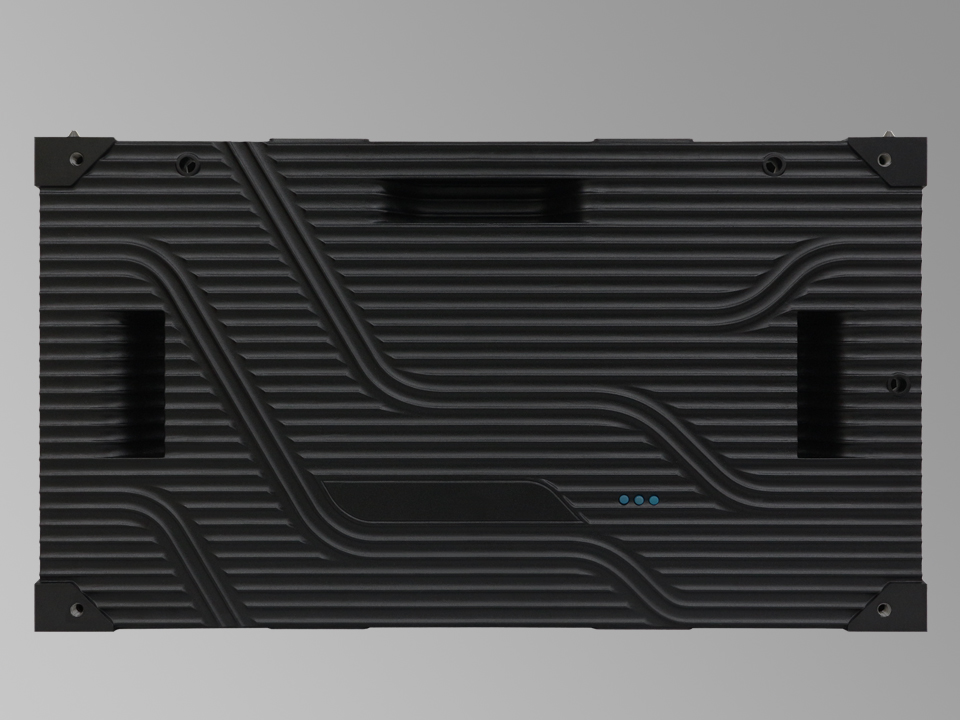

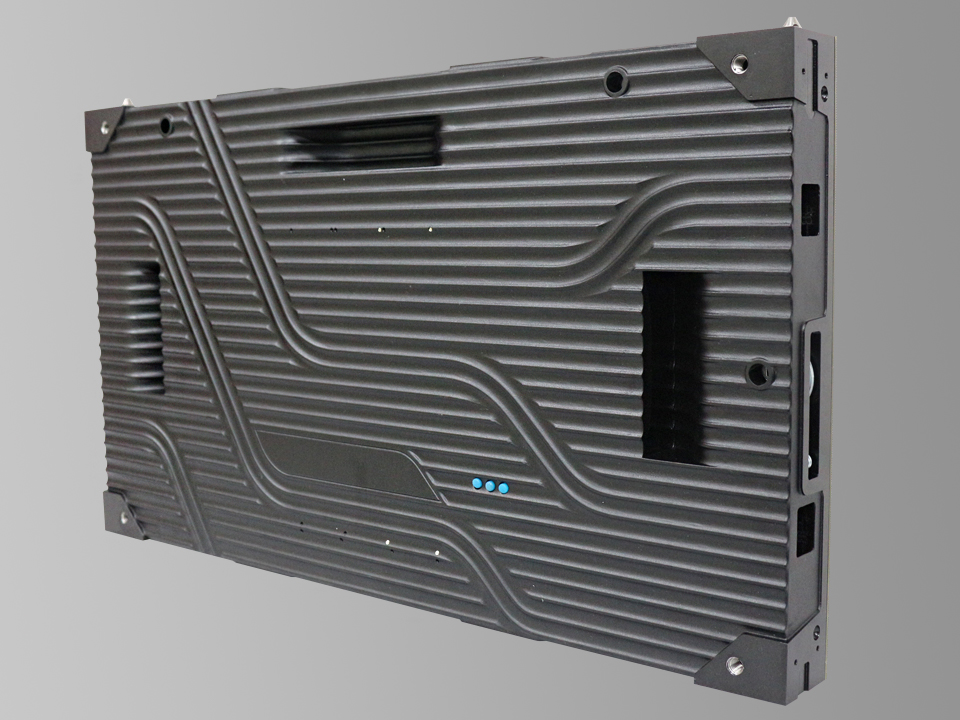

CNC high-precision die-casting aluminum box, super quiet fan free design.

Series	Indoor HD small pixel T series
Model Number	T0.9375	T1.25	T1.56	T1.875
Pixel Pitch(mm)	0.9375	1.25	1.56	1.875
Pixel Density (dots/m2）	1137778	640000	409600	284444
LED type	Mini 4 in 1	Mini 4 in 1 /SMD1010	Mini 4 in 1 /SMD1010	SMD1010/SMD1515
Panel Size(mm)	600337.548	600337.548	600337.548	600337.548
Panel Resolution(Pixels)	640*360	480*270	384*216	320*180
Module Size(mm)	150*168.75	150*337.5	150*168.75	150*337.5
Module Resolution(Pixels)	160*180	120*270	96*108	80*180
Panel Weight （kgs）	7	7	7	7
Panel Material	Die-Casting Aluminium	Die-Casting Aluminium	Die-Casting Aluminium	Die-Casting Aluminium
Maintenance Mode	Front/Rear	Front/Rear	Front/Rear	Front/Rear
Viewing Angle(°)	H170°/V170°	H170°/V170°	H170°/V170°	H170°/V170°
Brightness(nits)	600	600	600	600
Drive Mode	1/30 scan	1/30,1/45,1/27 scan	1/28,1/27scan	1/30 scan
Refresh Rate (hz)	≥3840Hz	≥3840Hz	≥38400Hz	≥3840Hz
Color Depth(bits)	16	16	16	16
Voltage(v)	110/220 AC	110/220 AC	110/220 AC	110/220 AC
Avg. Power Consumption (W/㎡ )	100	100	100	100
Max. Power Consumption (W/㎡)	420	420	420	420
Operating Humidity Range	10-90%	10-90%	10-90%	10-90%
Operating Temperature Range	-20℃～65℃	-20℃～65℃	-20℃～65℃	-20℃～65℃
IP Grade (Front/Rear)	IP54	IP54	IP54	IP54
Lifetime(h)	≥100000H	≥100000H	≥100000H	≥100000H
Certificate	CCC/CE/ROHS/FCC/TUV
