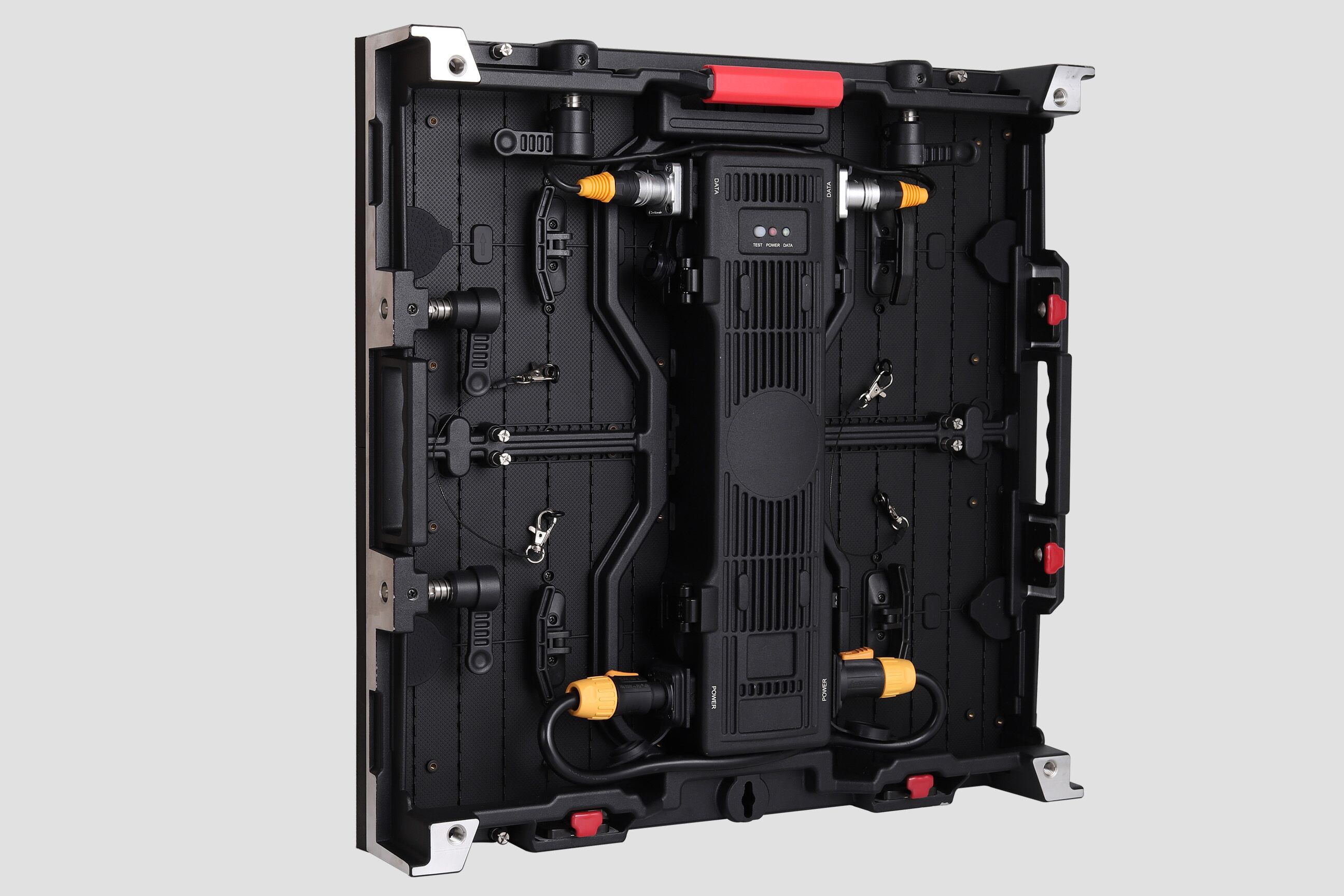

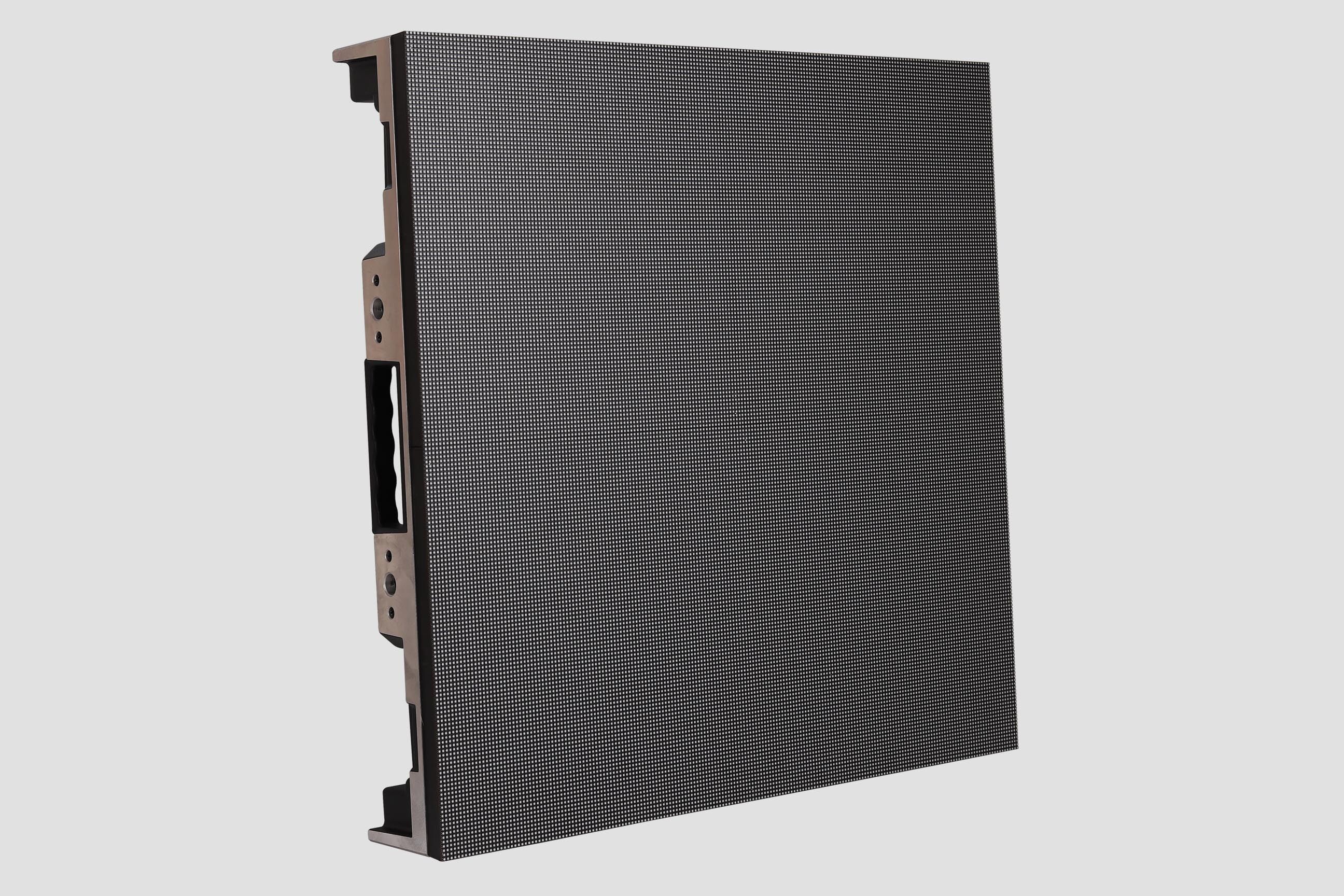

Indoor fixed LED display

(1)Using for fixed installation and rent .

(2) Full front and rear service

(3)Wall-mounted installation

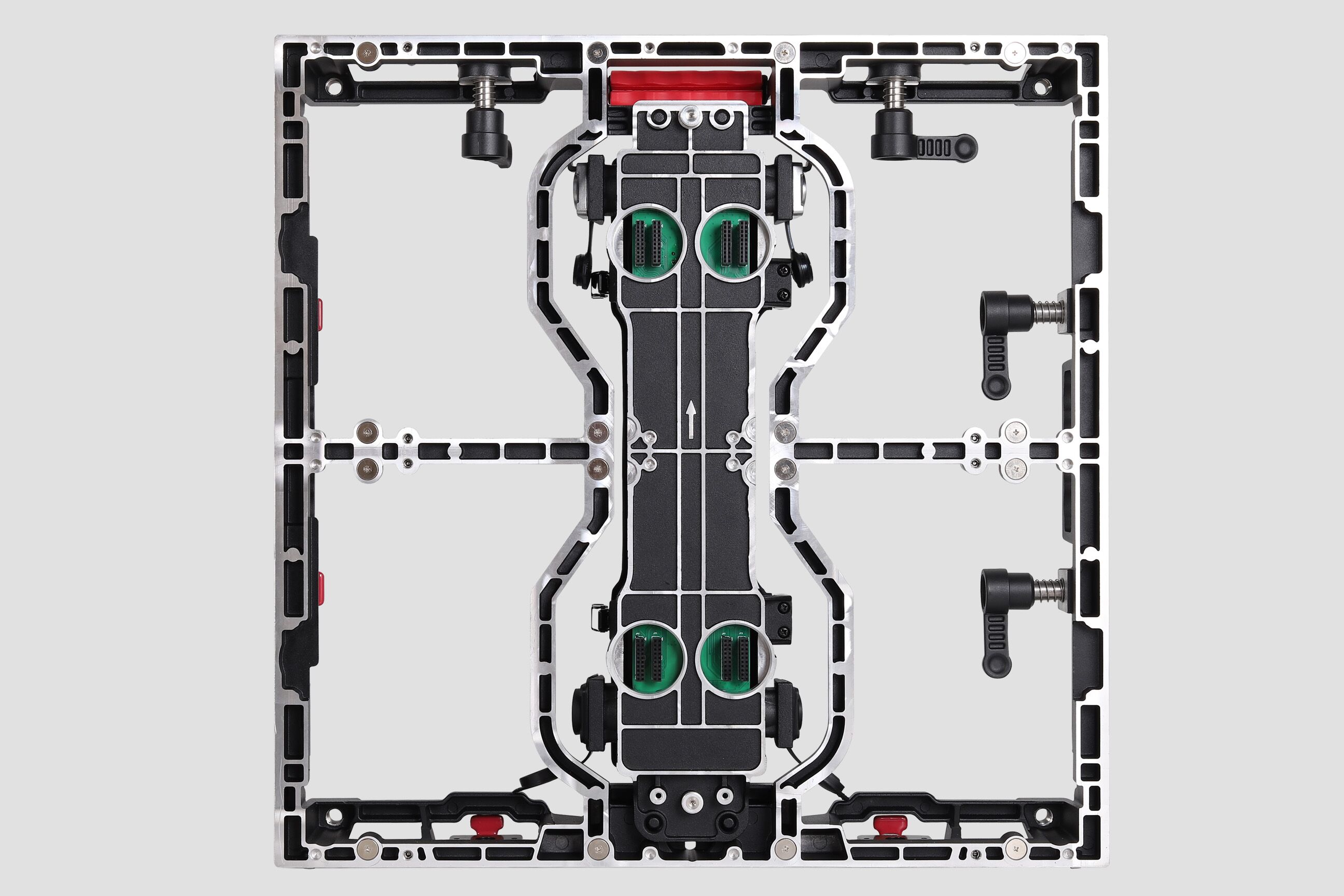

(4)Modules ,empty cabinets and control box are completely separated .

(5) Stocking empty cabinet (Including control box and all signal and power cables ,receiving cards ) in advance

 and just order modules after confirming the orders .

(6)The same cabinet is used for outdoor and indoor and compatible for almost all of pixel pitches such as

1.9mm,2.5mm,2.6mm,2.84mm,3.91mm,4.81mm and 5.95mm for indoor

 2.6mm,2.84mm,3.91mm,4.81mm,5.95mm,6.94mm for outdoor



Series		MS X
Model Number		MSX1.9	MSX2.5	MSX2.6	MSX2.84	MSX3.91	MSX4.81
Pixel Pitch(mm)		1.9	2.5	2.6	2.84	3.91	4.81
Pixel Density (dots/m2）		262144	160000	147456	123904	65536	43264
LED type		SMD1010	SMD1515 /SMD2020	SMD2020	SMD2020	SMD2020	SMD2020
Panel Size(mm)		500*500*85	500*500*85	500*500*85	500*500*85	500*500*85	500*500*85
Module Size(mm)		250*250	250*250	250*250	250*250	250*250	250*250
Panel Weight （kgs）		8.5	8.5	8.5	8.5	8.5	8.5
Panel Material		Die-Casting Aluminium	Die-Casting Aluminium	Die-Casting Aluminium	Die-Casting Aluminium	Die-Casting Aluminium	Die-Casting Aluminium
Maintenance Mode		Front/Rear	Front/Rear	Front/Rear	Front/Rear	Front/Rear	Front/Rear
Viewing Angle(°)		H160°/V160°	H160°/V160°	H160°/V160°	H160°/V160°	H140°/V140°	H140°/V140°
Brightness(nits)		750	1800	1500	1500	1200	1200
Refresh Rate (hz)		≥3840Hz	≥3840Hz	≥3840Hz	≥3840Hz	≥1920Hz	≥1920Hz
Color Depth(bits)		14	14	14	14	16	16
Voltage(v)		110/220 AC	110/220 AC	110/220 AC	110/220 AC	110/220 AC	110/220 AC
Avg. Power Consumption (W/㎡ )		227	221	203	216	200	202
Max. Power Consumption (W/㎡)		680	664	608	648	600	608
Operating Humidity   Range		10-90%	10-90%	10-90%	10-90%	10-90%	10-90%
Operating Temperature Range		-20℃～65℃	-20℃～65℃	-20℃～65℃	-20℃～65℃	-20℃～65℃	-20℃～65℃
IP Grade (Front/Rear)		IP40	IP40	IP40	IP40	IP40	IP40
Lifetime(h)		≥100000H	≥100000H	≥100000H	≥100000H	≥100000H	≥100000H
